Lathe Department

Custom Lathe Machining Services

Companies looking to have specific parts repaired or replaced can turn to Windham Manufacturing’s Lathe Department for custom machining services. Our equipment is up to date and compatible with the latest drawing programs, giving us the versatility to work around whatever it is you need!

Lathe Capabilities & Services

Here’s a description of exactly what we can offer you in our machine shop that you might not get from a competing provider:

Turning capabilities up to 78″ diameter and 120″ in length

In addition, we work with material that has a 60″ maximum height under cross rail when doing vertical machining. We also have 40″ x 120″ horizontal CNC turning capabilities.

Repair of mechanical, pneumatic and hydraulic systems

Having trouble with the systems that propel your machines? Whichever of these three ways your equipment works, we can produce a custom solution to get you back in business as soon as possible. Because some of your machines might be older or worn from use, repair work can be challenging for a typical job shop. At Windham, we have the technology and experience to overcome these obstacles.

CAD drawings available for customers

In addition to our reverse engineering services, we can provide designs to your team that will make it much simpler to complete repairs or replace hard-to-find parts in the future.

Design, tooling, FIXTURING and machined components

Getting components exactly right requires precision. Once you’ve checked to make sure that we can take care of your existing equipment, you can be confident that we have the ability to develop new parts as well. When you work with Windham Manufacturing, you will have a partner that is dedicated to meeting your needs.

Reliable and precise

Need some data analyzed somewhere offsite? Our commitment to delivering a quality product extends outside of the workshop. We can provide services in a way that aligns with your standard operating procedures to avoid disruption. We know this can be especially useful for companies that depend on a lot of older, hard-to-replace parts.

Documentation

There’s nothing like having physical proof of any sort of interaction that you have with us.

Part inspection

In addition to the engineering services that we offer, you can count on us to thoroughly inspect the parts that you submit to us to guarantee there won’t be any unexpected problems later on.

FACILITIES

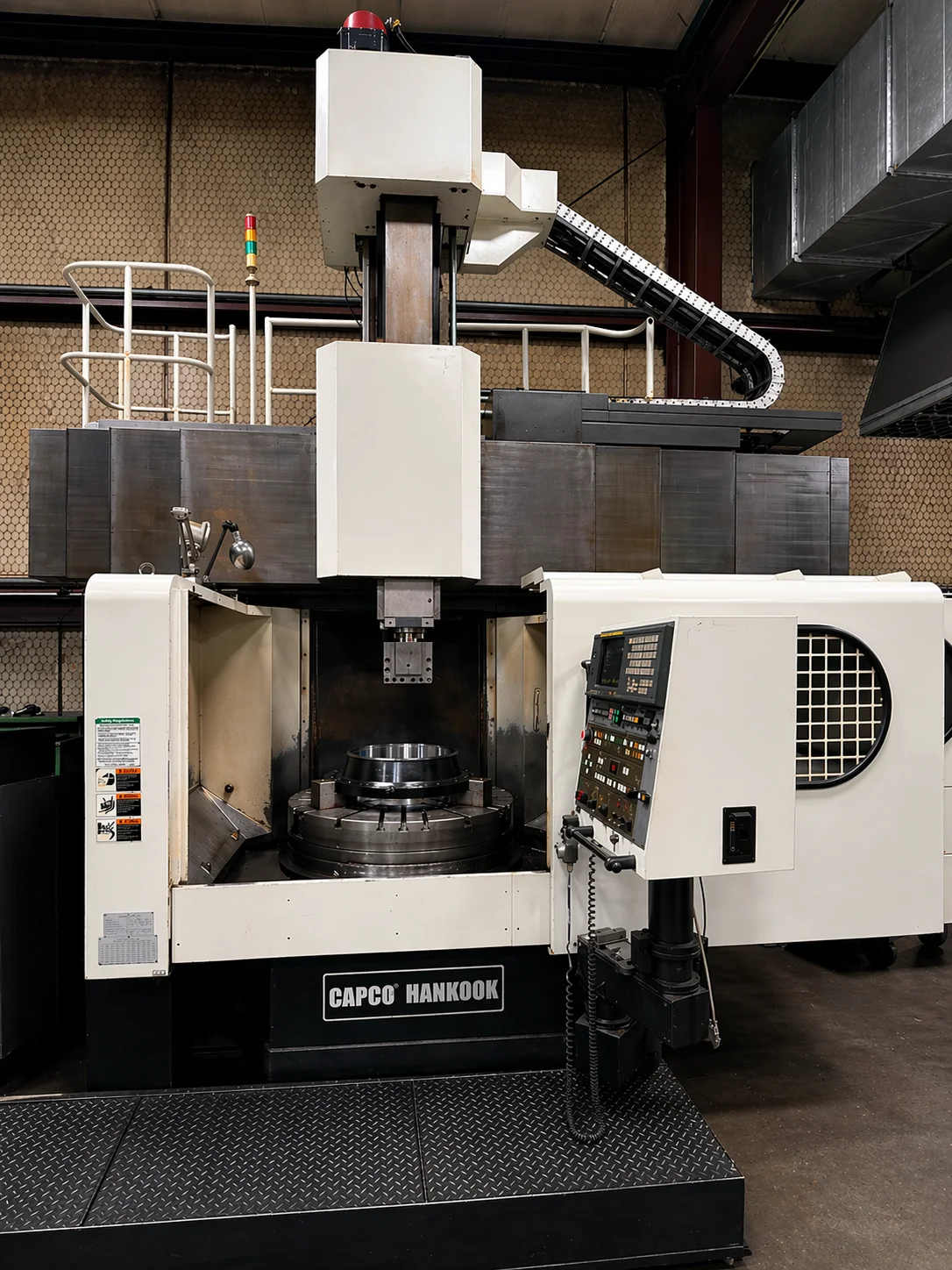

Capco-Hankook VTC-100

Specifications:

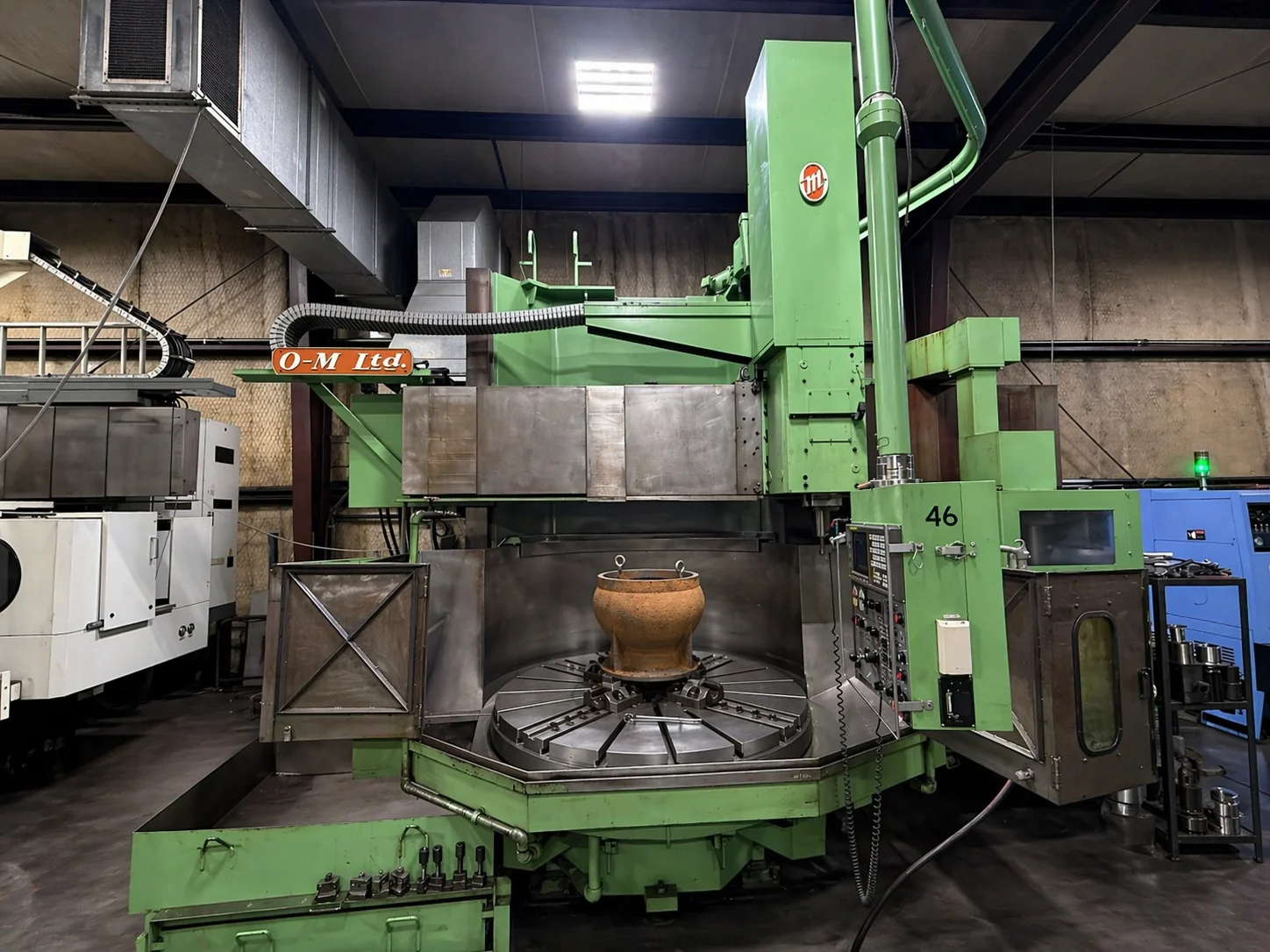

O-M VT5-16NE

Specifications:

78-¾” Max Cutting Diameter
67” Chuck Diameter
63” Max Cutting Height
75” Max Under Cross Rail
Fanuc 18T Control
12 Tool Changer
Load Capacity: 22,000 lbs

IBARMIA ZVH 55/L1600 Multiprocess

Specifications:

Weiler E90

Specifications:

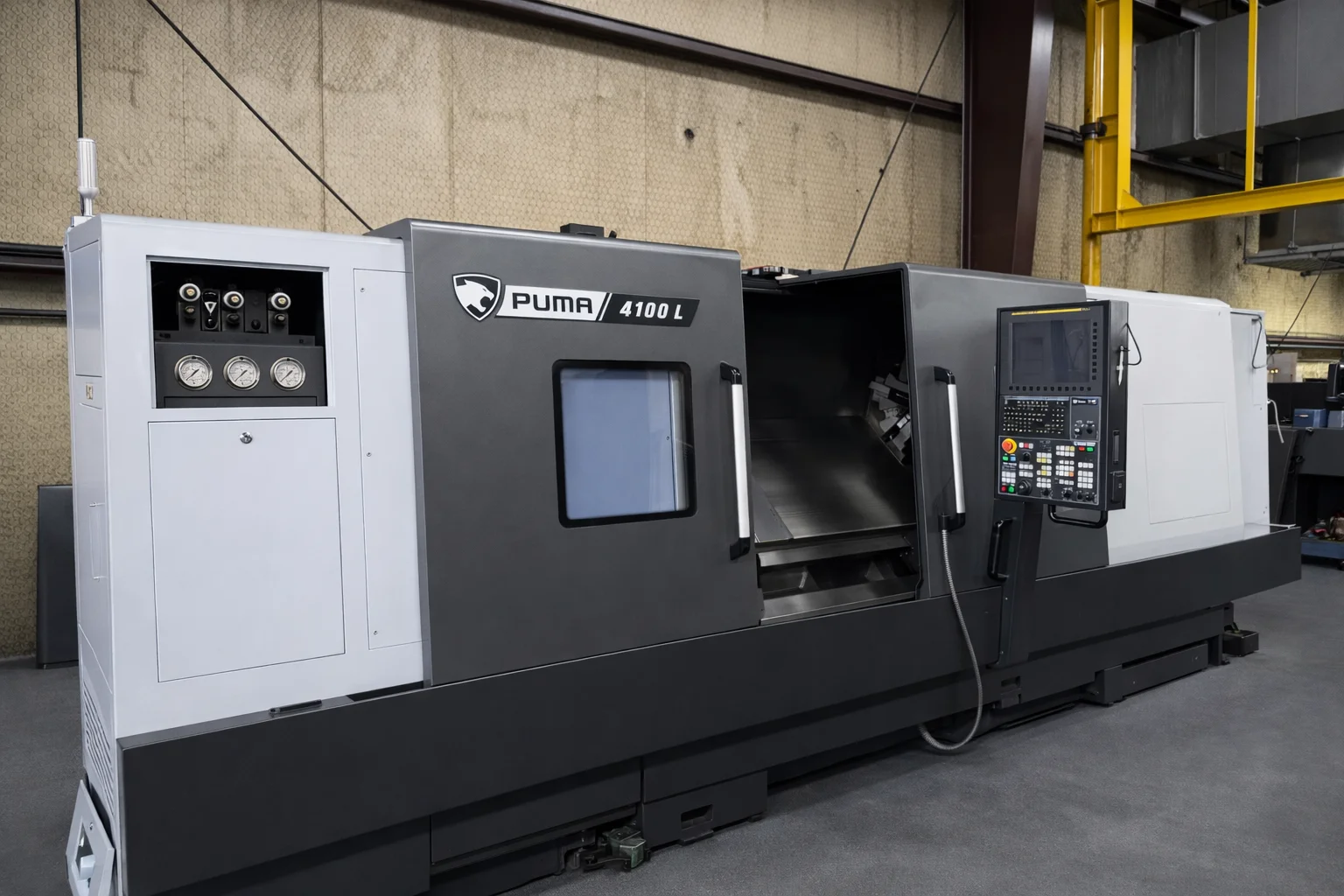

Doosan Puma 4100LB

Specifications:

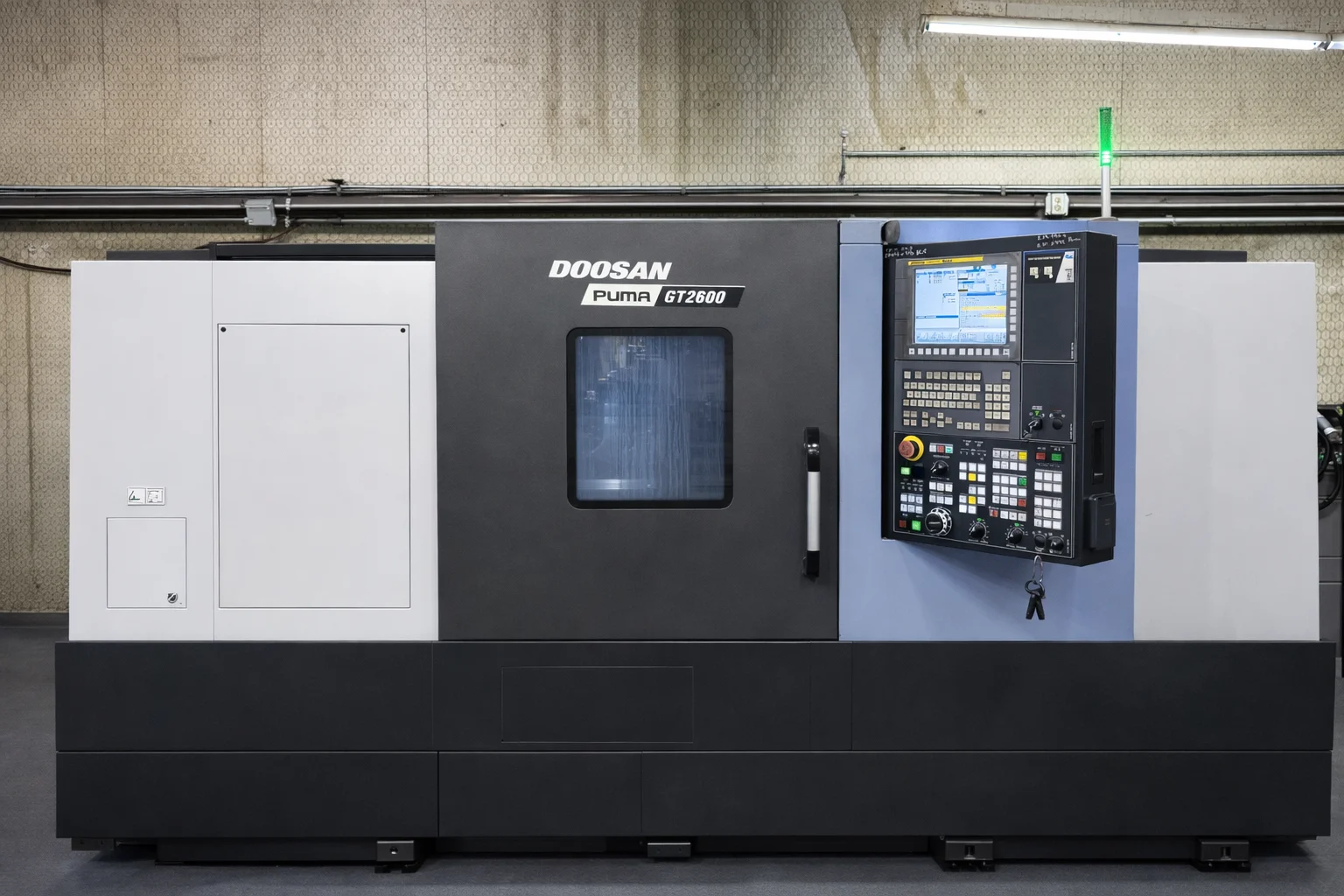

Doosan Puma GT2600

Specifications:

Mori Seiki SL 303

Specifications:

Mori Seiki SL 250

Specifications:

Built for Long-Term Partnerships

At Windham Manufacturing, we take pride in solving complex challenges and supporting our customers as their needs evolve. Our goal is not just to complete a project—but to become a trusted manufacturing partner you can rely on.
