Mill Department
Advanced Milling Capabilities You Can Rely On
At the core of Windham Manufacturing’s operations is our Mill Department—continuously upgraded with advanced technology and expanded capacity to exceed the expectations of a traditional job shop. Our modern facility is built to produce precision-machined components that meet exact specifications while supporting our customers’ operational goals.
With advanced CAD/CAM systems and decades of hands-on experience, we manufacture durable, high-quality parts with efficiency and consistency. Every service we provide is centered on delivering exactly what you need—on time and to the highest standard.
Our facility reflects our commitment to excellence. From organized workspaces to equipment that meets strict safety and reliability standards, we maintain an environment that supports precision, efficiency, and dependable results.
Capabilities & Strengths
High-Capacity Machining
We handle components weighing up to 30,000 lbs, allowing us to machine large, complex parts that many shops are not equipped to support.
Large-Travel Vertical Machining
Our vertical machining capabilities accommodate parts up to 60″ × 30″, enabling precise shaping and efficient production across a wide range of applications.
Extended Horizontal Machining
We process larger components exceeding 118″ in length, allowing for consistent machining of multiple parts while minimizing dimensional variation.
Custom Machining Solutions
Every project is tailored to your exact requirements. We specialize in producing custom components without compromising on quality, performance, or critical design features.
Cost Control & Efficiency
Using an integrated ERP system, we closely monitor production costs and timelines—ensuring projects remain on budget and on schedule.
FACILITIES

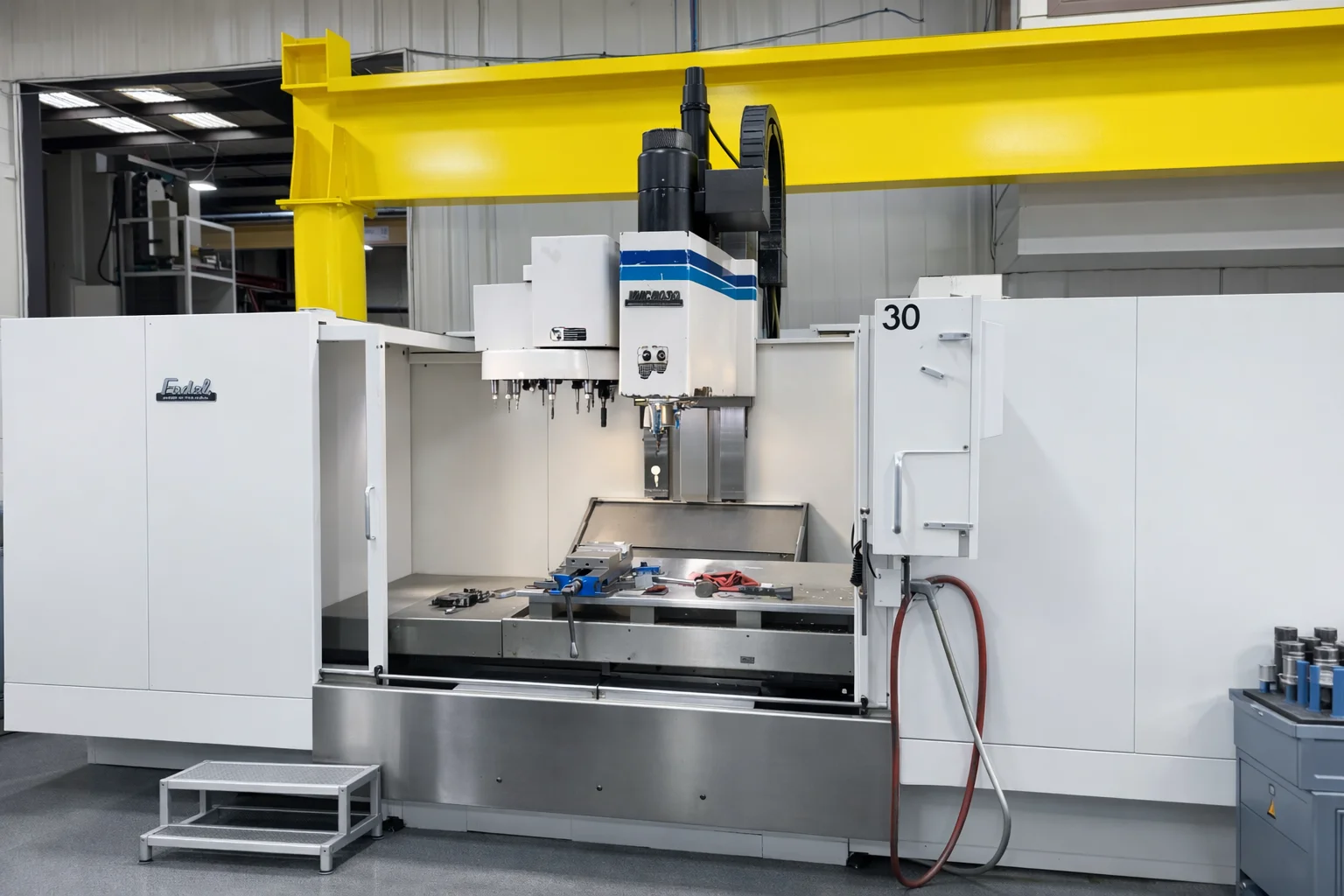

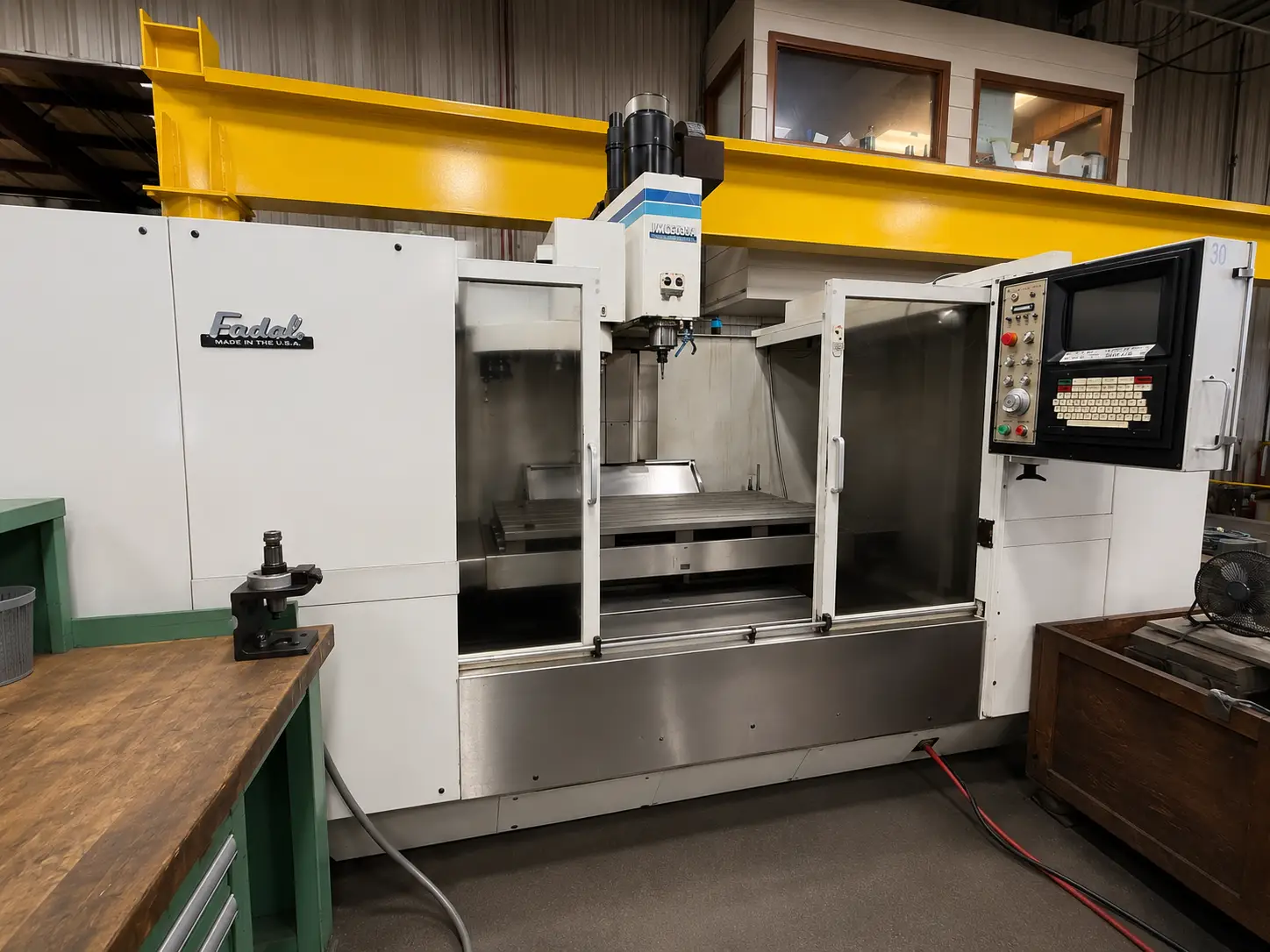

Fadal VMC 6030
- Quantity: 1
- Type: Vertical Machining Center with 4th Axis
- Year: 1995
Specifications:
- Travels: 60″ X × 30″ Y × 30″ Z
- Spindle Speed: 0 – 10,000 RPM
- Spindle Power: 22.5 HP
- Tool Capacity: 21 ATC
- Table Load Capacity: 5,000 lbs

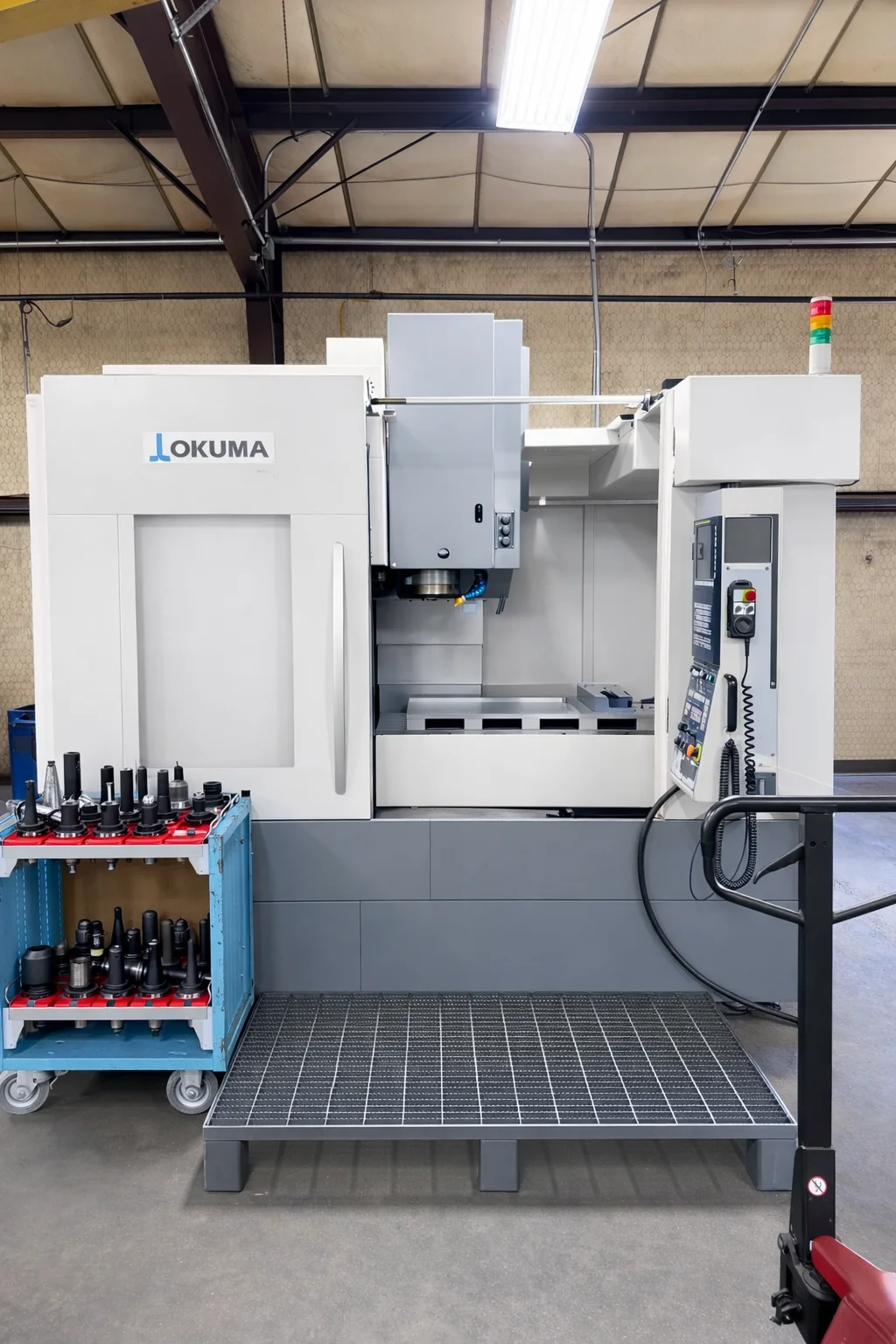

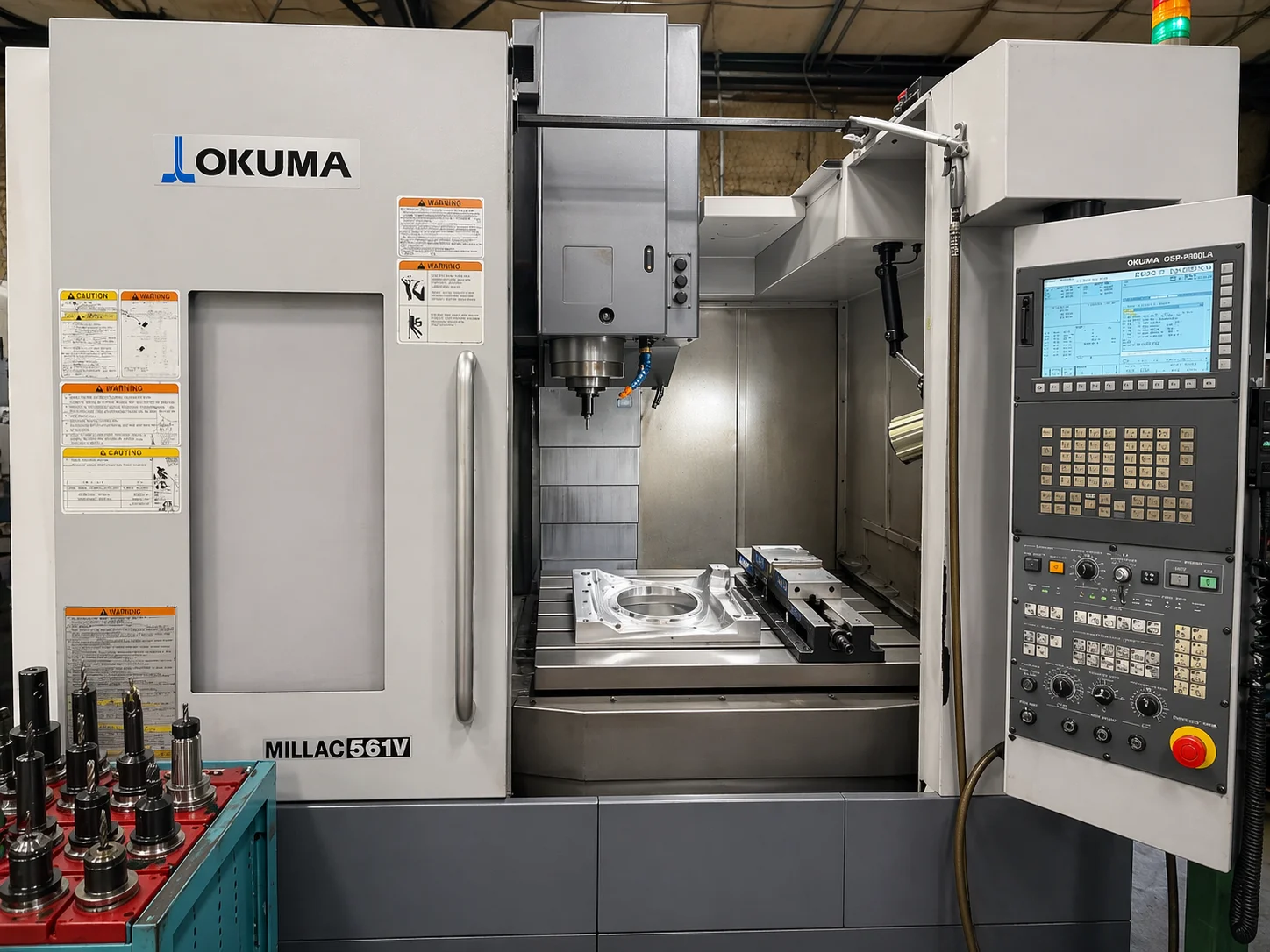

Okuma Millac 561V II
- Quantity: 2
- Type: CNC Vertical Machining Center
- Year: 2012
Specifications:
- Travels: 40″ X × 20″ Y × 20″ Z
- Spindle Power: 30 HP
- Spindle Speed: 600 RPM

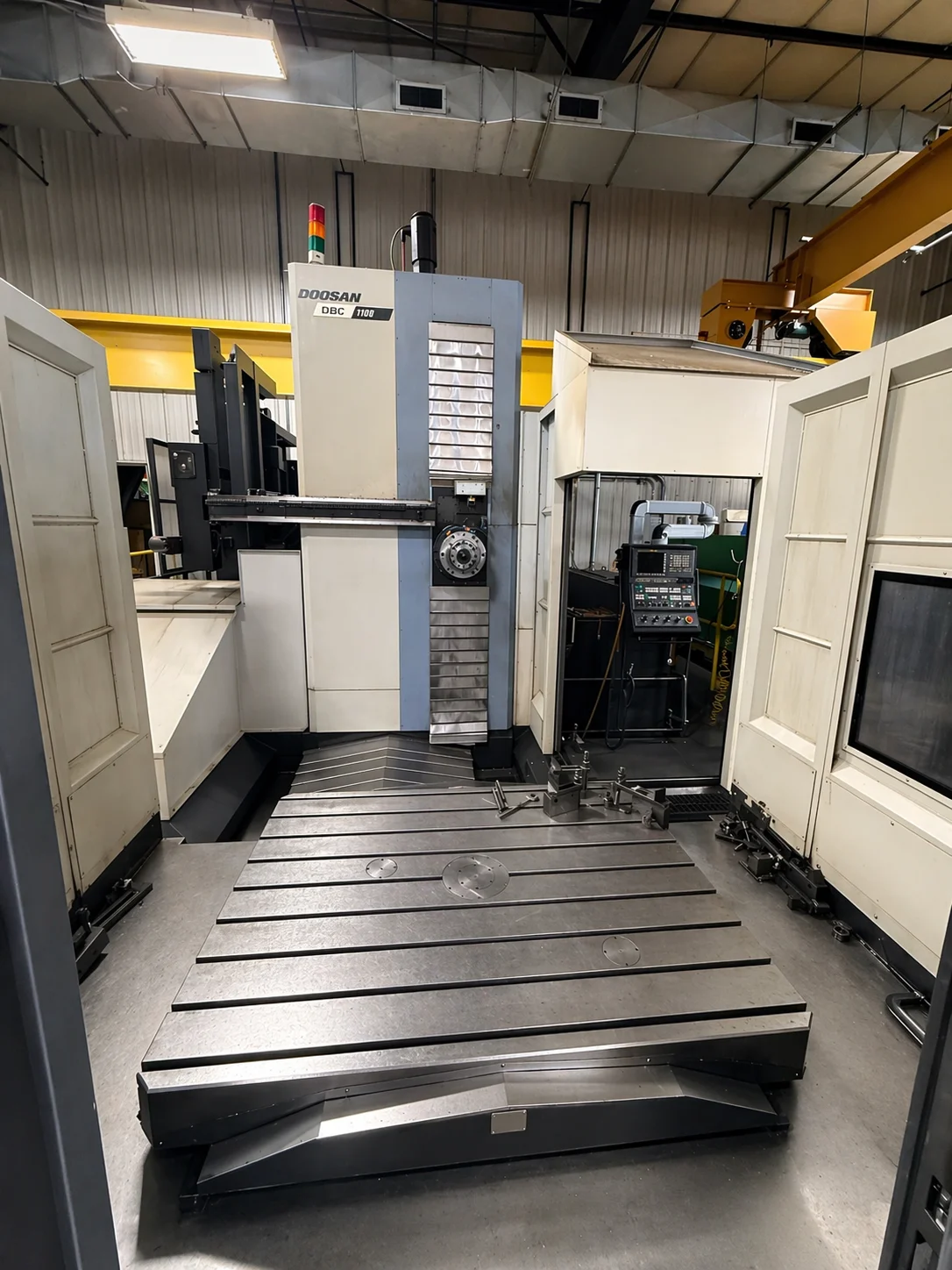

Doosan DBC 110IICNC
- Quantity: 1
- Type: CNC Horizontal Boring Mill with Rotary Table
- Year: 2019
Specifications:
- Spindle Diameter: 110 mm (4.3″)
- Control: Fanuc 31i Model B
- Travels: 98″ X × 79″ Y × 59″ Z
- Table Load Capacity: 22,000 lbs

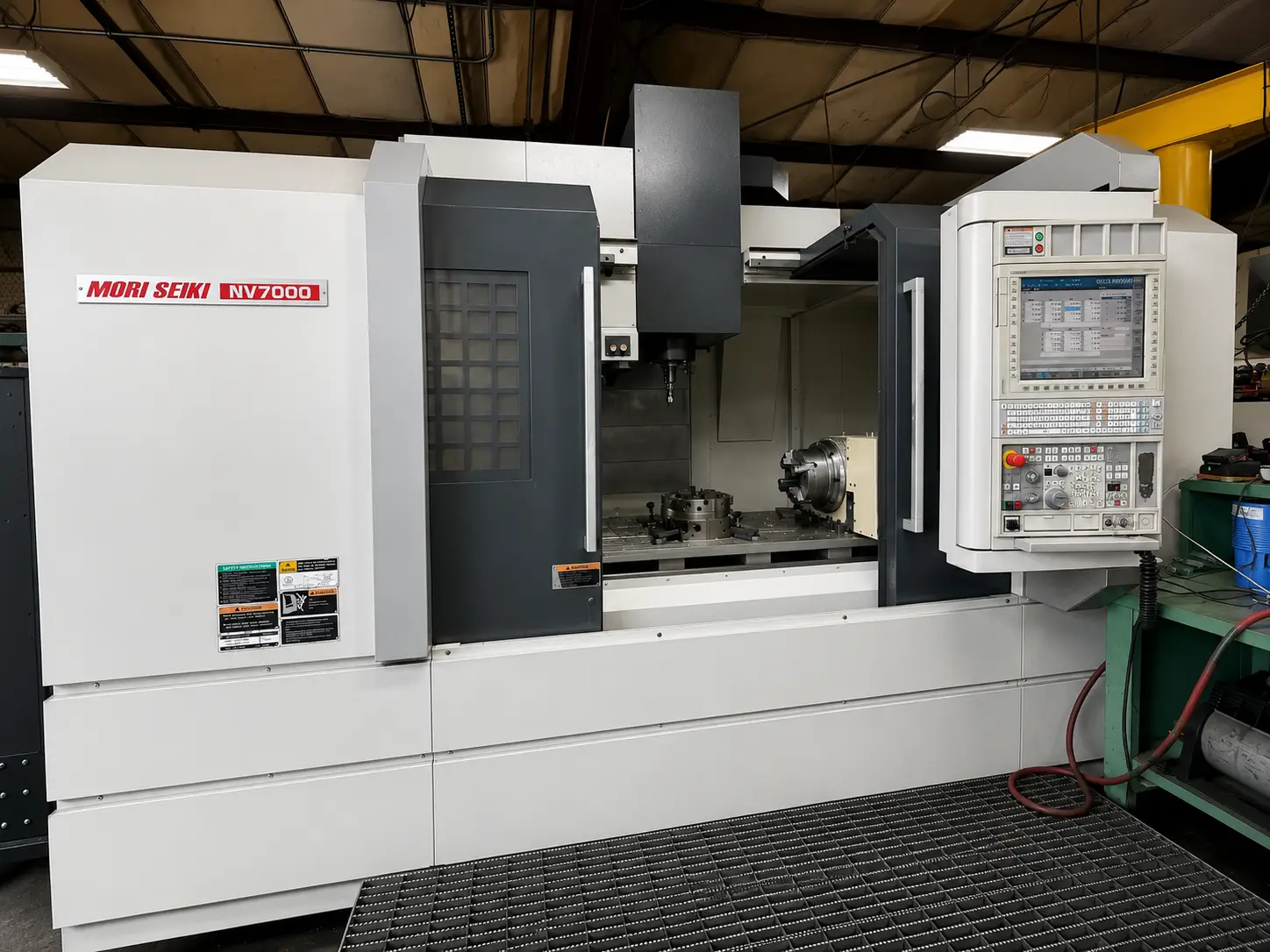

Mori Seiki NV7000
- Quantity: 2
- Type: CNC Machining Center with 4th Axis
- Year: 2011
Specifications:
- Travels: 60″ X × 30″ Y × 30″ Z
- Spindle Speed: 15,000 RPM
- Spindle Power: 35 HP

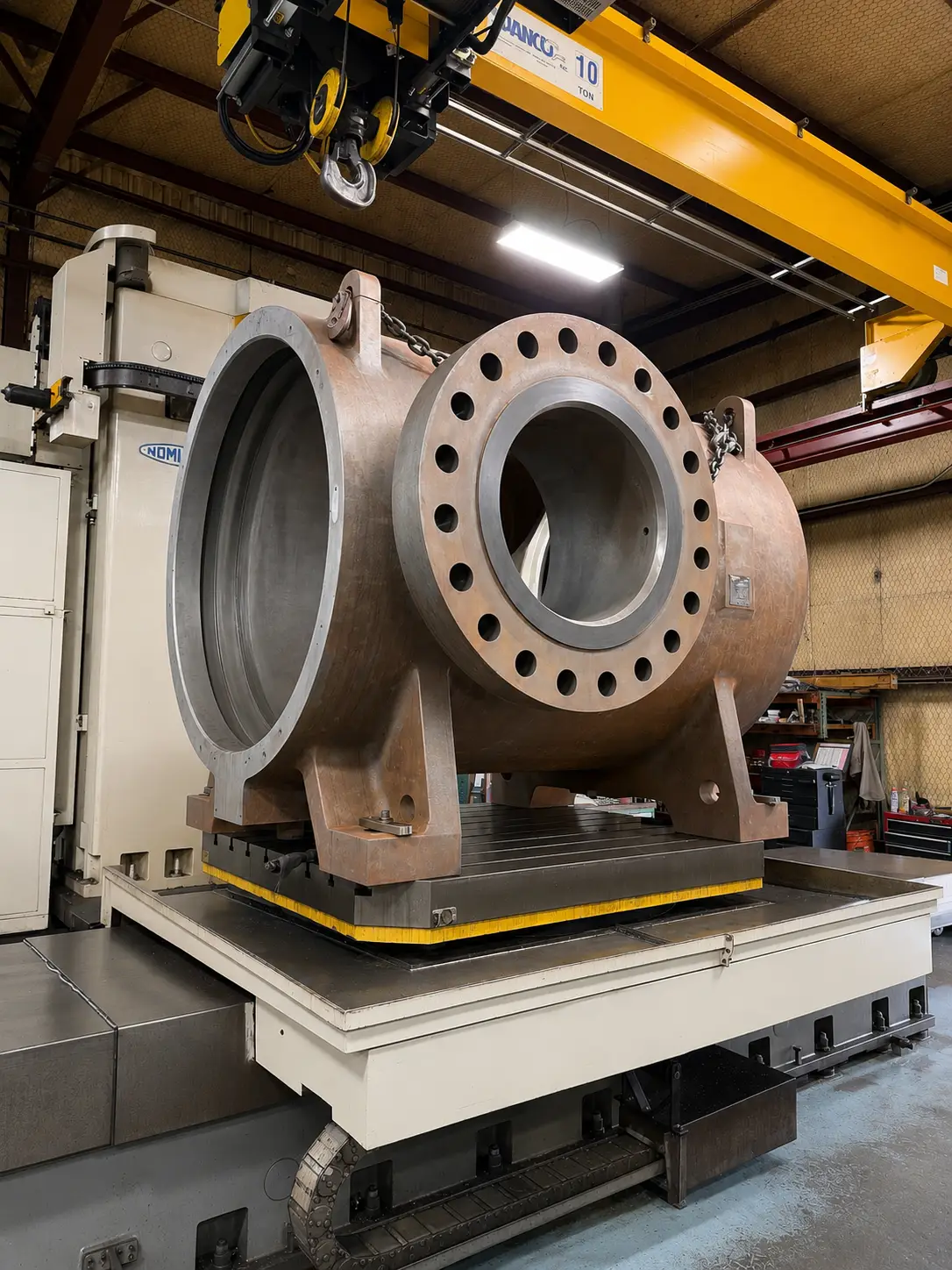

Nomura HBA-135P-R5
- Quantity: 1
- Type: CNC Horizontal Boring Mill with Rotary Table
- Year: 2002
Specifications:
- Spindle Diameter: 135 mm (5.3″)
- Control: Fanuc 16i-M
- Travels: 118″ X × 90″ Y × 57″ Z
- Table Load Capacity: 35,000 lbs

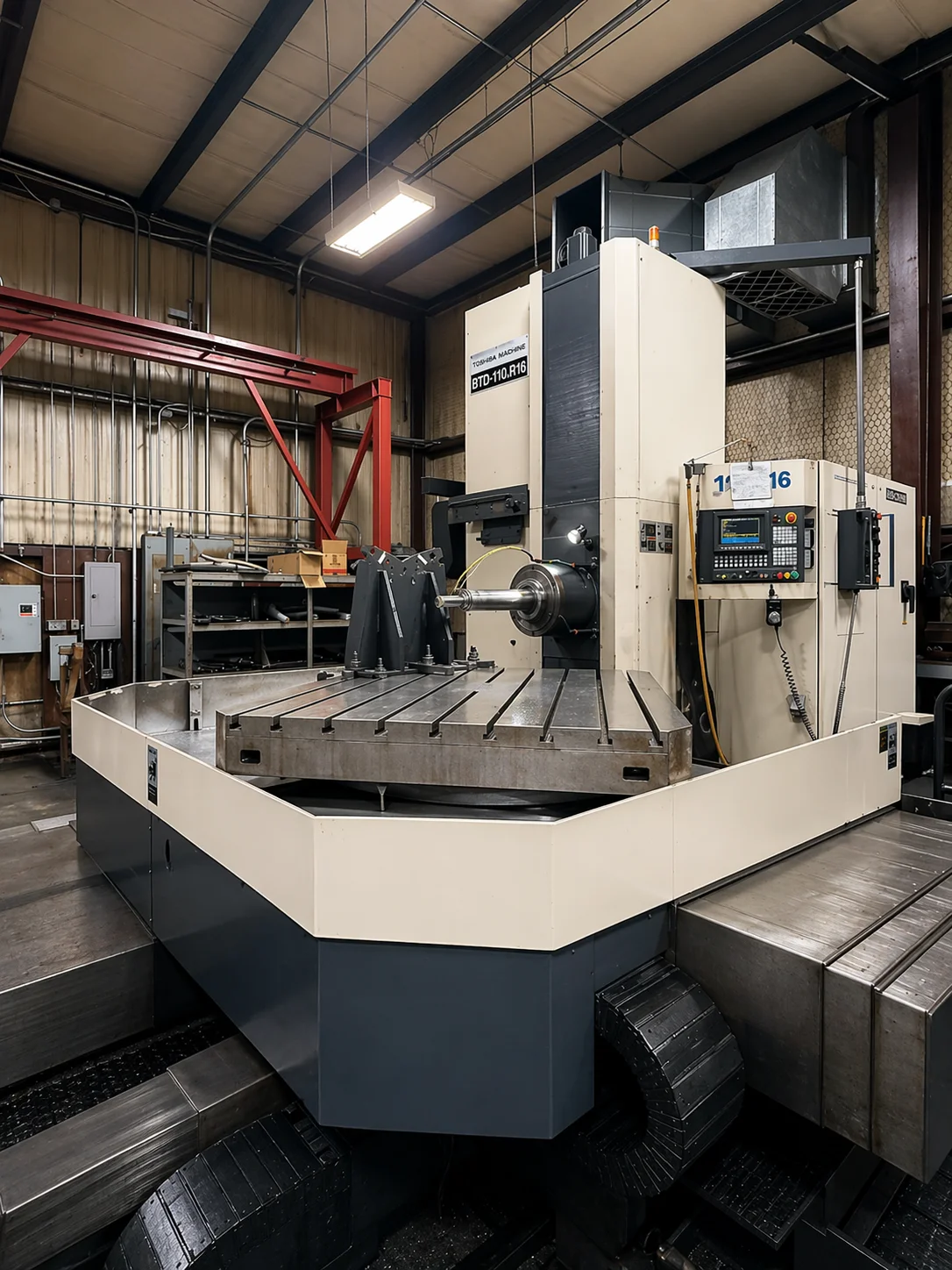

Toshiba BTD 110.R16
- Quantity: 1
- Type: CNC Horizontal Boring Mill with Rotary Table
- Year: 2007
Specifications:
- Spindle Diameter: 110 mm (4.3″)
- Control: Tosnuc 888
- Travels: 78.7″ X × 59″ Y × 57″ Z
- W-Axis Travel: 19.5″
- Table Load Capacity: 16,000 lbs

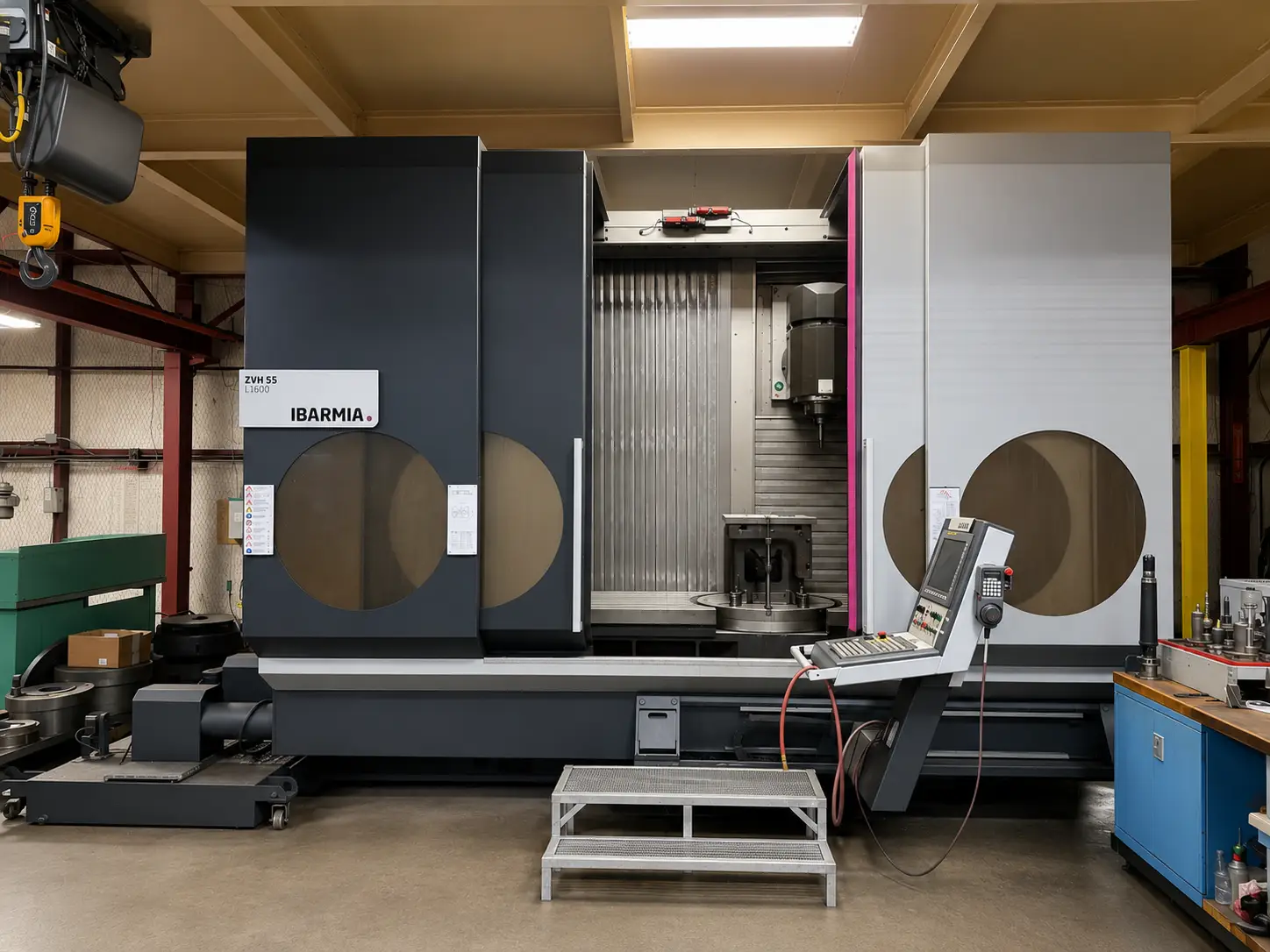

IBARMIA ZVH 55/L1600 Multiprocess
- Quantity: 1
- Type: Multiprocess Machining Center
- Year: 2013
Specifications:
- Model: ZVH 55/L1600
- Serial Number: 13773
- Control: Fanuc 31i
- Travels: X1600 × Y800 × Z1100 mm
- Chuck Size: 800 mm
- Head Rotation: ±105°
Contact us
Built for Long-Term Partnerships
At Windham Manufacturing, we take pride in solving complex challenges and supporting our customers as their needs evolve. Our goal is not just to complete a project—but to become a trusted manufacturing partner you can rely on.
Our Address
8520 Forney Rd, Dallas, TX, 75227
Call Now
(214) 388-0511
Send E-Mail
office@windhammfg.com
Machine Inventory
Capco-Hankook VTC-100
- Live #50 Taper Spindle
- 50" Swing
- Fanuc 18T Control
- Auto Three Jaw Chuck
- Convertible to Four Jaw
O-M VT5-16NE
- 78¾" Max Cutting Diameter
- 67" Chuck Diameter
- 63" Max Cutting Height
- 75" Max Under Cross Rail
- Fanuc 18T Control
- 12 Tool Changer
- 22,000 lbs Load Capacity
IBARMIA ZVH 55/L1600
- Fanuc 31i Control
- X1600 × Y800 × Z1100 mm
- 800 mm Chuck
- Head Rotation ±105°
Doosan Puma GT2600
- Fanuc Control
- 12" Chuck + Collet
- 26" Turning Length
- 18" Turning Diameter
- 30 HP
Mori Seiki SL 303
- 12" Chuck
- 60" Between Centers
- 16" Diameter Capacity
Multicam Plasma Oxy
- 6' × 10' Water Table
- 4" Plate Gas Cutting
- 1" Plate Plasma Cutting
